Érzékelő kapcsolók

5 720 Ft

Nettó ár: 4 504 Ft

Készlet: Raktáron
Cikkszám: DMSGS-P020

Mennyiség

db Kosárba

Kívánságlistára Összehasonlítás

Rövid leírás

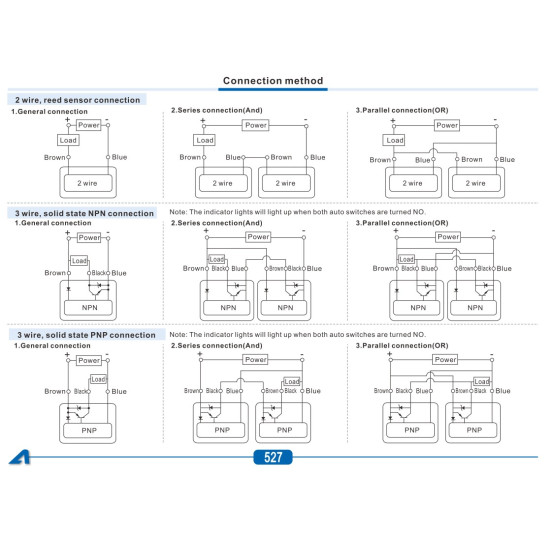

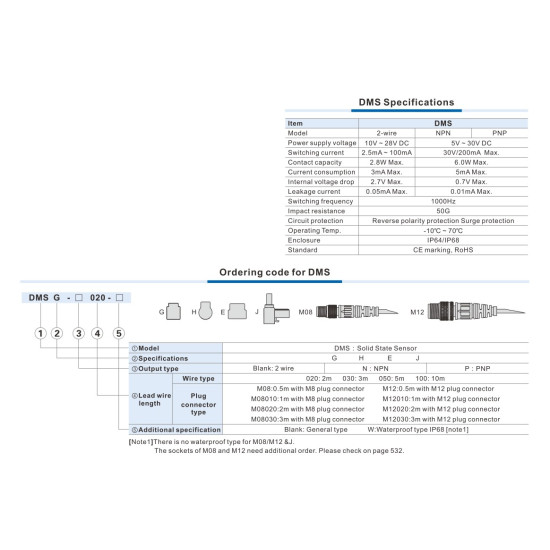

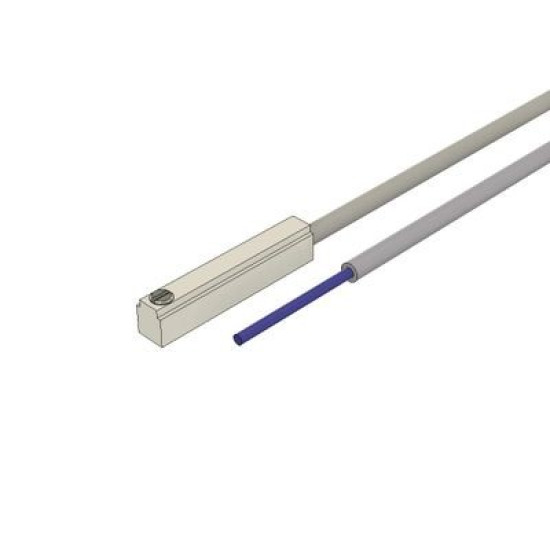

Solid state sensor GS type PNP 2M G or GS type magnetic sensor, normally open, 2 or 3 wire (PNP/NPN), solid state connection – generally used with air grippers, compact cylinders, slide table cylinders and other special cylinders. Used with a fixing band or a tie rod cylinder accessory, they can be installed on tie rod cylinders or round cylinders too. These are introduced in the groove of the cylinder and fixed by tightening the screw, where the application needs them to be installed, with the LED parallel to the surface of the cylinder. Or, they can be fixed in the band or the support for the required positioning. According to the application, they can be ordered with IP64 or IP68 enclosure (they can permanently be submerged). Technical specifications for G type sensors with solid state connection: Power supply voltage: 2-wire: 10V ~ 28V DC 3-wire PNP or NPN: 5V ~ 28V DC Switching frequency: 1000Hz Impact resistance: 50g Enclosure: standard: IP64 waterproof: IP68 Standard: CE marking, RoHS Working temperature: -10 ~ 70°C
